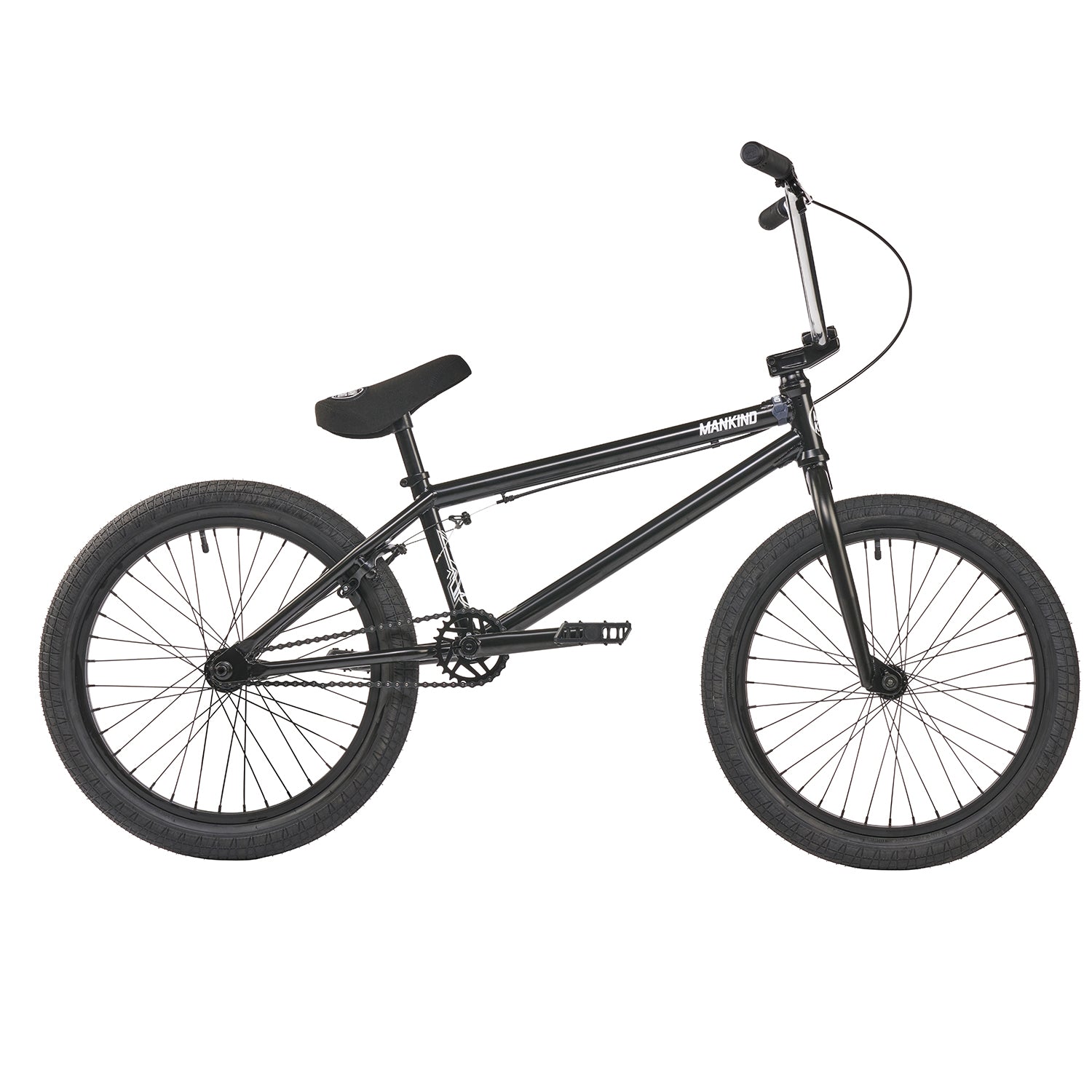

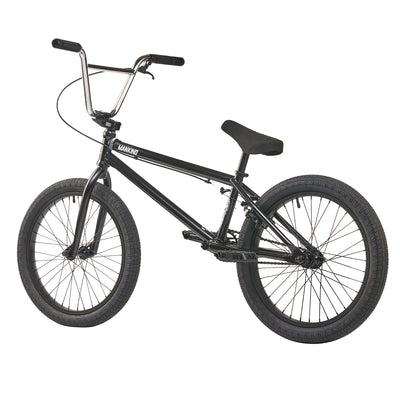

Das Mankind NXS Bike kombiniert großartiges Aussehen mit erstaunlichen technischen Daten! Das NXS ist unser beliebtestes Modell, das ein perfektes Einstiegsmodell zu einem günstigen Preis ist. Das NXS 20" ist außerdem in XS erhältlich: 18.5" (130cm bis 150cm), JR: 20.0" (150cm bis 170cm), 20.5" (170cm bis 180cm) und XL: 21.0" (ab 185cm) Oberrohrversionen, was es Ihnen leicht macht, die für Sie passende Größe zu finden. Verbinden Sie sich mit dem NXS und beginnen Sie Ihre Reise in die Welt des BMX!
--
Key features:
Mankind Control Grips
Chromoly 3-Piece Cranks
Mankind Control Steel Sprocket 25t
Sealed Integrated Headset
Sealed Mid BB
Geometry:
Top Tube Length: XS: 18.5“, JR: 20.0", 20.5“, XL: 21.0“
Chain Stay Length: 13.25"
Head Tube Angle: 75.0°
Stand Over Height: 8.5″ (XS:8.0“)
Bar Height: XS: 8.2“, JR: 8.5“, NXS & NXS XL: 8.75“
Fork Offset: 28mm
Weight: 10.7 kg / 23.59 lbs for NXS
Colors:
NXS XS: Gloss Black, Gloss Blue,
NXS JR: Gloss Black, Off White
NXS: Gloss Black, Gloss Metallic Blue, Gloss Grey,
NXS XL: Gloss Black, Gloss Raw

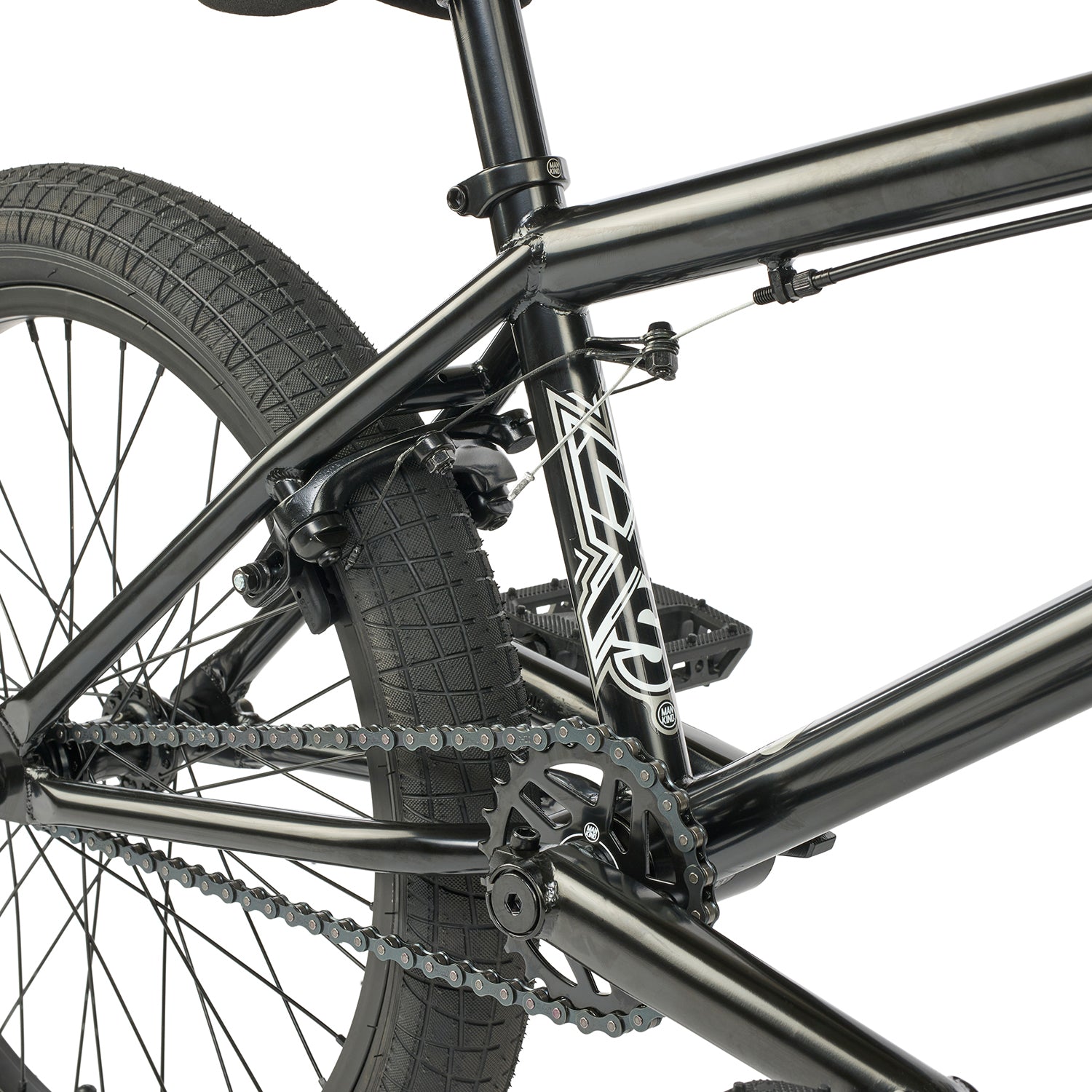

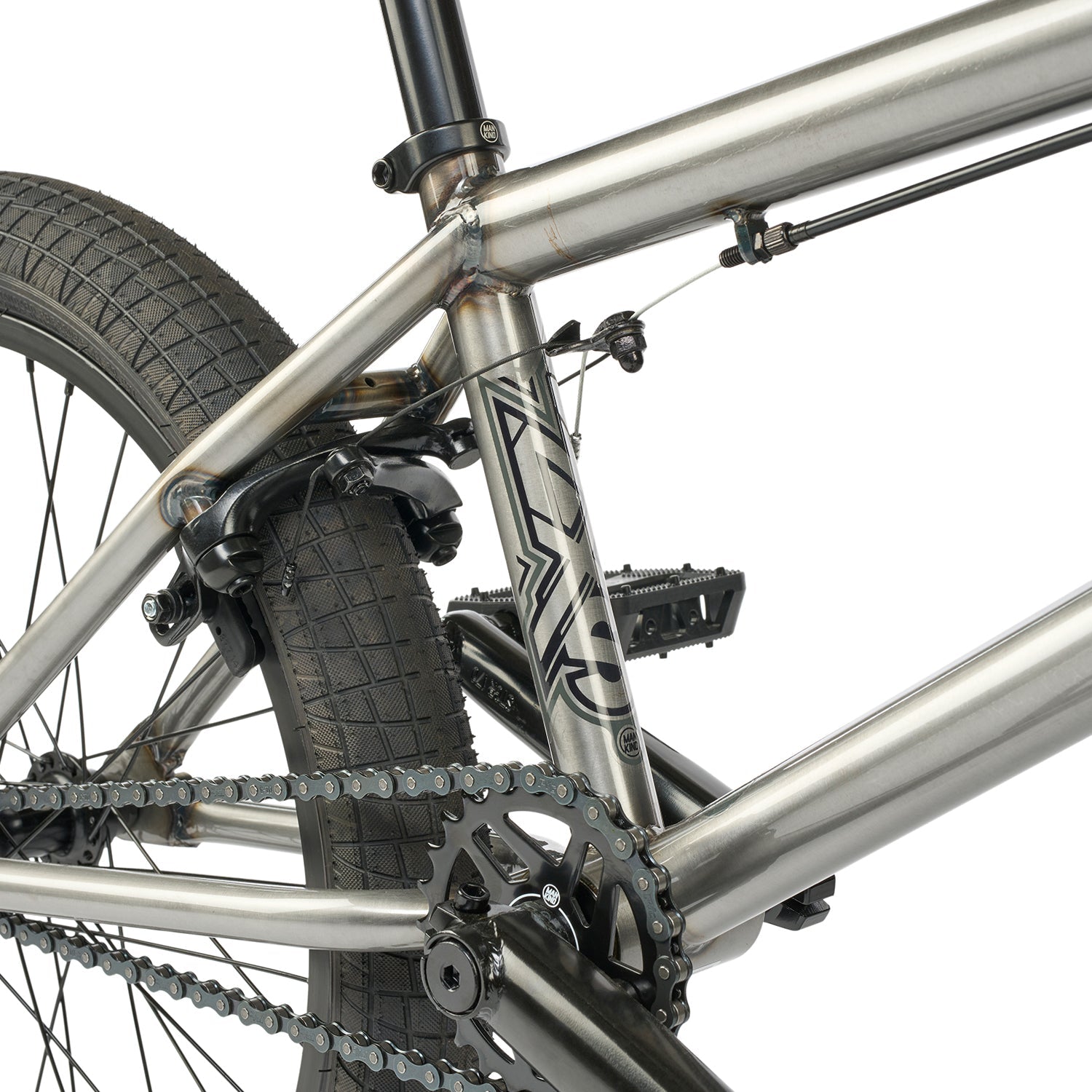

FRAME 1020 Hi-Ten Steel Frame - Top & Down Tube Gusset
TOP TUBE XS: 18.5”, JR: 20.0”, NXS: 20.5”, XL: 21.0”
CHAIN STAY 13.25”
HEAD TUBE 75°
SEAT TUBE 71°
BB HEIGHT 11.5”
STAND OVER 8.5” (XS: 8.0”)
BRAKE MOUNTS Welded

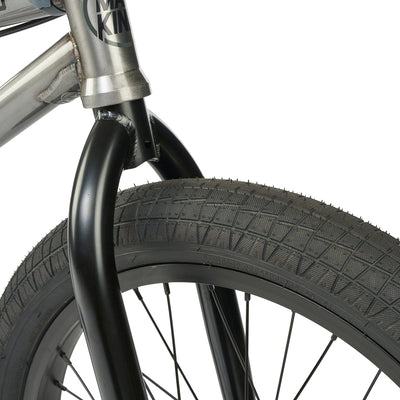

FORK 1020 Hi-Ten Steel - 1-PC Steerer, Tapered Legs, 28mm offset
BARS 1020 Hi-Ten Steel, XS:8.2”,JR:8.5”,NXS&XL:8.75”,12°/ 2°,28.5”
GRIPS Mankind Control Grips
BAR ENDS Mankind Nylon

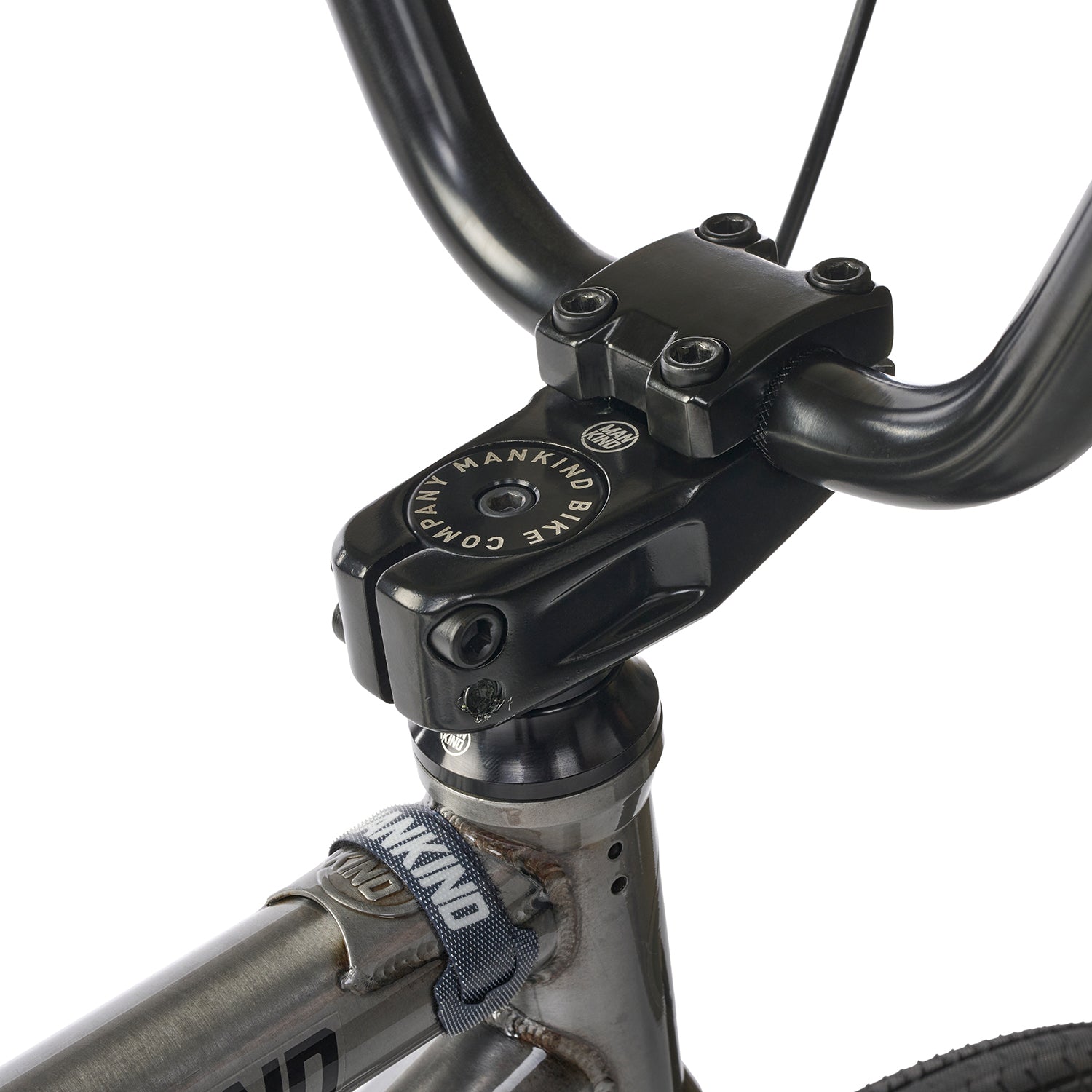

STEM Mankind Control Top Load Stem - Alloy - 50mm reach
HEADSET Mankind Control Sealed Integrated
BRAKE Alloy U-brake
BRAKE LEVER Alloy Lever - 2-Finger Design
REAR HUB Mankind Control Cassette Hub – Sealed - 14mm axle - 9t Driver

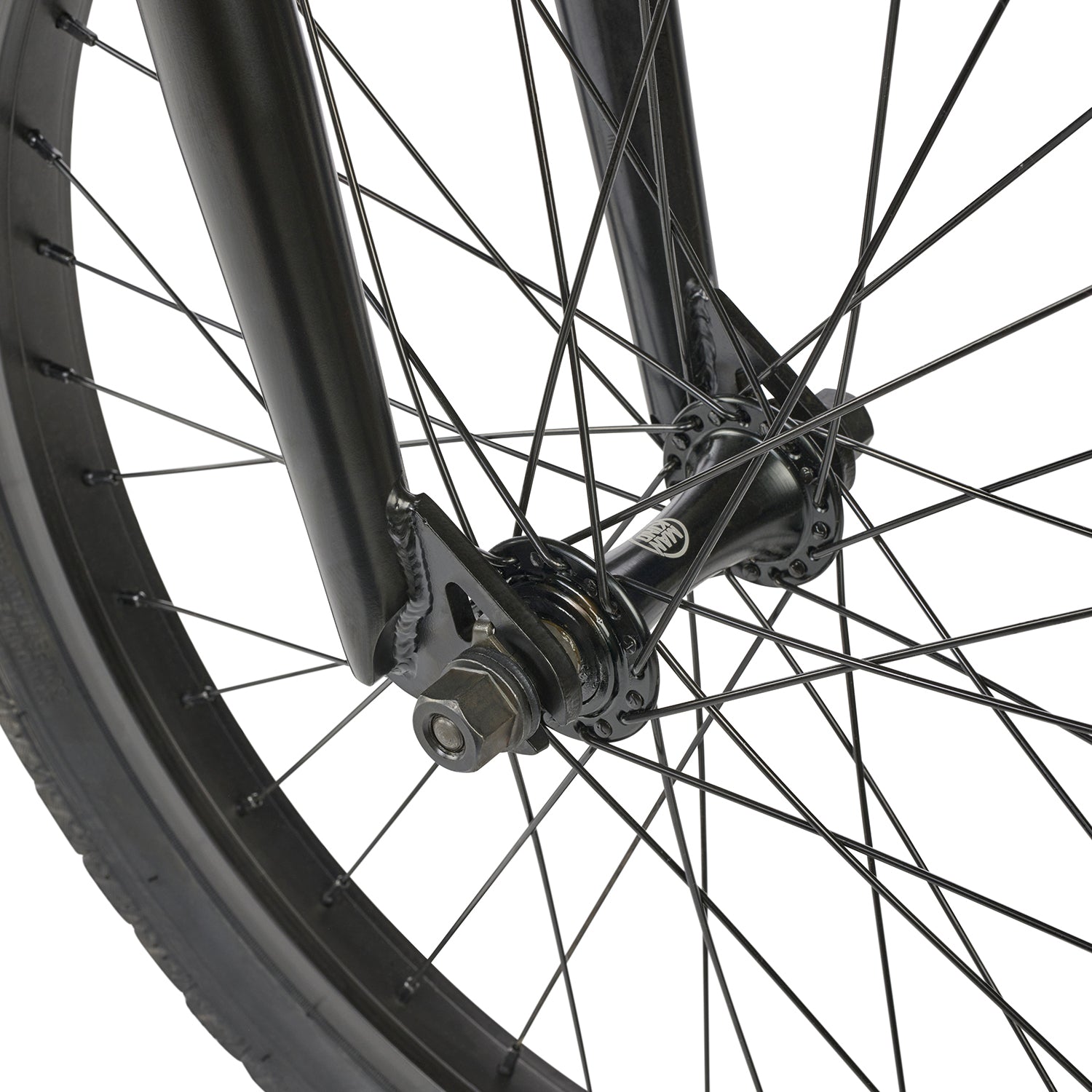

FRONT HUB Alloy - Loose Ball - 3/8” axle
SPROCKET Mankind Control Steel 25t
CRANKS Chromoly – 8 Spline - 3-Piece - 170mm - 19mm (XS:165mm)
BOTTOM BRACKET Mid BB Sealed - 19mm
CHAIN PYC 410 - black

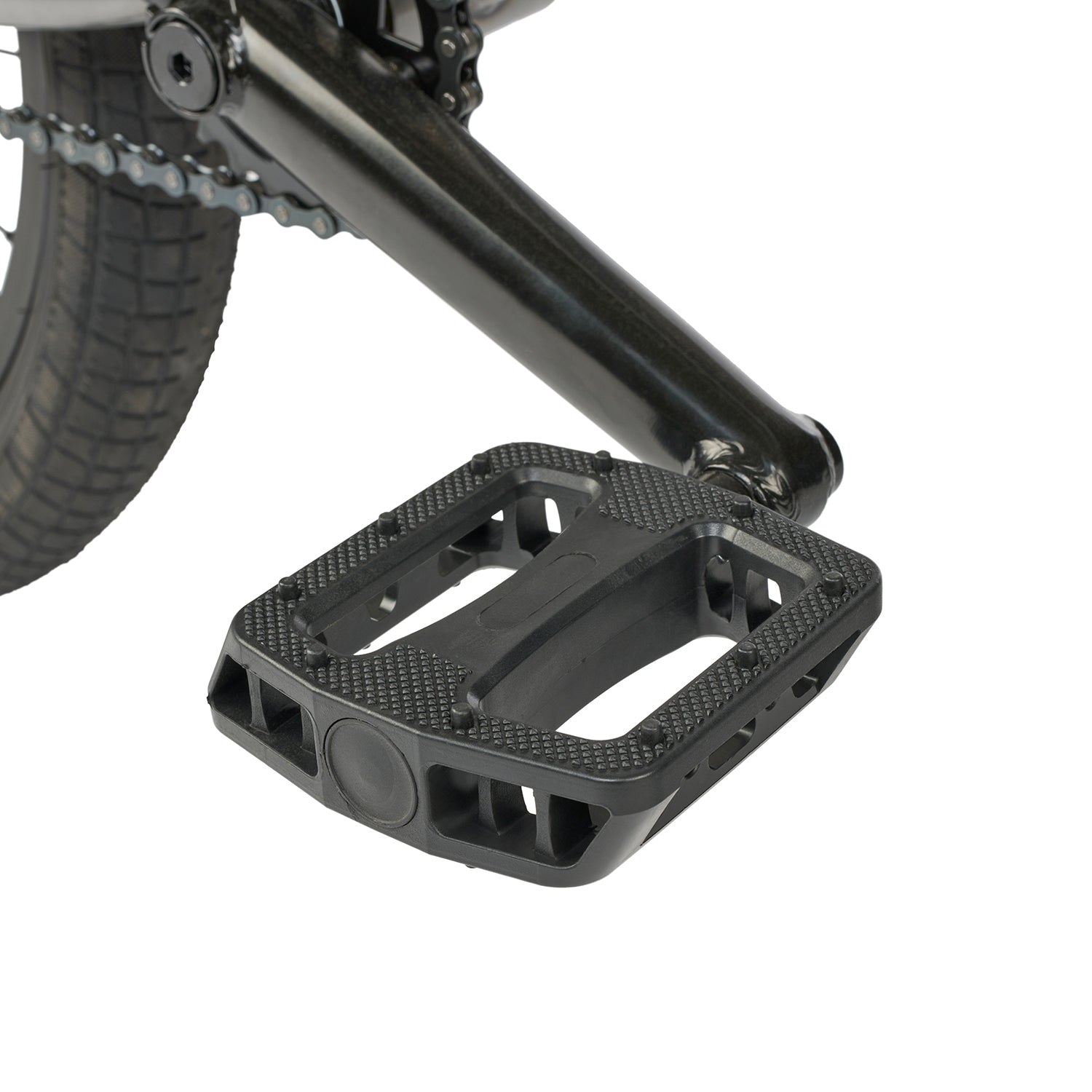

PEDALS Plastic Platform
FRONT RIM 6061 Alloy - Single Wall 36H
REAR RIM 6061 Alloy - Single Wall 36H
SPOKES Steel Spokes – 14mm nipples - black
FRONT TIRE Park/Street Tire LP 60 PSI - 2.3”
REAR TIRE Park/Street Tire LP 60 PSI - 2.3”
PEGS None
SEAT Mankind NXS Mid Seat/Post Combo
SEAT POST Seat/Post Combo
SEAT POST CLAMP Mankind Control Alloy - black
COLORS
NXS XS: Ed Black, Gloss Blue
NXS JR: Ed Black, Gloss Off White
NXS: Ed Black, Gloss Metallic Blue, Gloss Grey
NXS XL: Ed Black, Gloss Trans Raw
WEIGHT 10,70 kg
UVP 499,95 (ed black)
UVP 529,95 (gloss raw)
